Phonograph Home C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ

• Year
• 1908

• Category
• Talking machine - Mechanical Gramophone/Phonograph

• Radiomuseum.org ID
• 143520

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Other Combination - see Notes

• Power type and voltage
• Solar- and/or muscle driven, also addl. power jack possible

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org

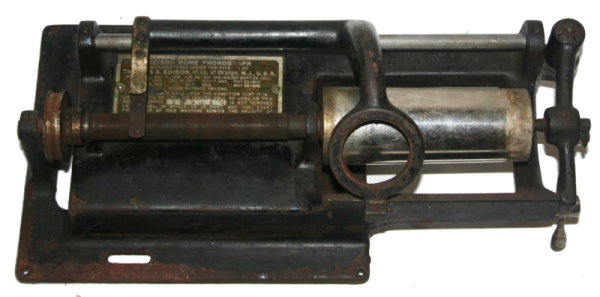

• Model: Phonograph Home C - Edison, Thomas A., North

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 305 x 230 mm / 16.1 x 12 x 9.1 inch

• Notes
• Edison Home Phonograph Model C, plays 2 and 4 min.cylinders.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Friedhelm Schaik. See "Data change" for further contributors.
