Hobby MWM 3k Ch= Nora W30 Front verziert

EIA Elektriska Industri AB; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1933 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 343538
    • alternative name: Elektriska Industri AG

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 150; 220; 240 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hobby MWM 3k Ch= Nora W30 [Front verziert] - EIA Elektriska Industri AB;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 375 x 430 x 150 mm / 14.8 x 16.9 x 5.9 inch
  • Notes

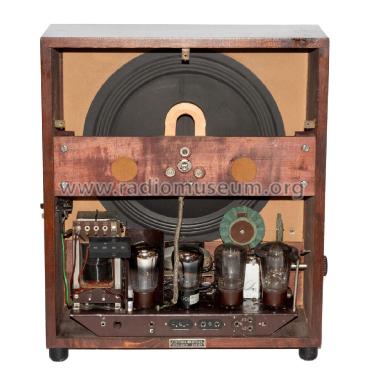

  • Das Radio enthält ein vergleichbares Chassis zum Nora W30, wobei die Abstimmung über ein waagterechtes Rändelrad anstelle des Drehknopfes erfolgt. Die Skala liegt ebenfalls waagerecht.

    Siehe auch EIA Hobby mit schlichter Front.

  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
