• Country
• France

• Manufacturer / Brand
• ELA (E.L.A.), L'Électronique Appliquée; Paris, Montrouge

• Year
• 1962 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 330804

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

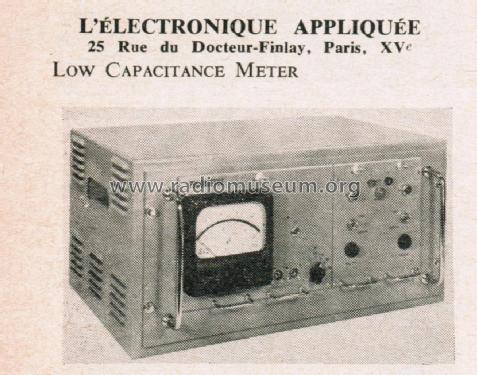

• Model: Capacimètre Picomètre - Low Capacitance Meter PFM-1 - ELA E.L.A., L'Électronique

• Shape
• Tablemodel, low profile (big size).

• Notes

• Capacimètre à lecture directe des capacités de très faible valeur.

  4 plages de mesure de 0 à 60 pF, dont la gamme plus basse couvrant 0 à 1.5 pF.
  Generateur à quartz délivrant sous 1 MHz une tension sinusoïdale de 10 Veff.

  Ce modèle peut être livré en version du table ou pour rack.

  ---

  This unit is made to measure capacitances of very small value.
  The measure range is 0 to 60 pF in 5 ranges. The lowest range cover 0 to 1.5 pF.
  Measurement is made at 1 MHz.
  The instrument is supplied complete with a stabilized power supply and is suitable for rack mounting.

• Mentioned in
• Electronic Engineering, volume 34, June 1962

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
