- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1954/1955
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 19776
-
- alternative name: AGA-Baltic Radio AB; Stockholm
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: PW6 - AGA and Aga-Baltic Radio AB;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 327 x 179 x 269 mm / 12.9 x 7 x 10.6 inch
- Notes
- 3 Geschwindigkeiten: 33 1/3, 45, 78
Kristall-System, 30-14000 Hz.
Parallelgerät zum Elac PW6 und Polydor PW6.
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Price in first year of sale
- 172.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
- Other Models
-
Here you find 309 models, 228 with images and 209 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from AGA and Aga-Baltic Radio AB; Sweden
Forum contributions about this model: AGA and Aga-Baltic: PW6
Threads: 2 | Posts: 4
Einen erworbenen Plattenwechsler PW6 mit vier Geschwindigkeiten im Pape-Koffer hab ich vorliegen, es ist nur das Typenschild im inneren der Chassi aufgebracht am Koffer selber ist nichts feststellbar.
Das angelegte Modell hat drei Geschwindigkeiten, wie soll ich nun vorgehen ? neues Modell anlegen oder in Bemerkung das einbringen.
mfG
Fischer
Attachments
- D_Electroacustic_PW6_ 002 (32 KB)
- D_Electroacustic_PW6_knopf (11 KB)
Karlheinz Fischer, 04.Jul.10

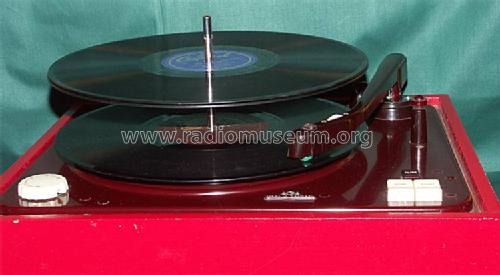

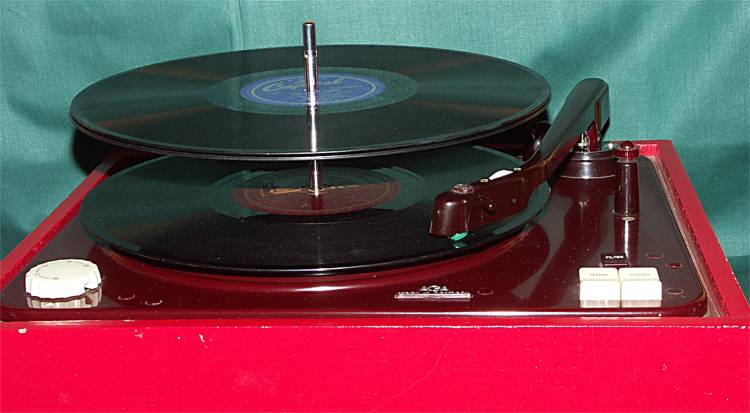

The Swedish manufacturer AGA used this Elac deck named AGA PW6SC in there radiograms and the deck could also be bought separately. My wife had it installed in her parents HMV radiogram instead of the standard 78 rev player. Our kids later used it to play their records, thus the home made bright red case!
The changer has an Elac KST9 crystal element with two switchable saphire needles SNM9 marked N and M. The changer also has an automatic stop function.
My deck is still in the original state and works well.
Attachments
- AGA (Elac) PW6SC (60 KB)
- AGA (Elac) PW6SC in action! (39 KB)
Bo Samuelsson, 03.Jan.07
