- Country
- France
- Manufacturer / Brand
- Elecco, La Construction Radio-Électrique; Pantin
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200053
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-140 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org

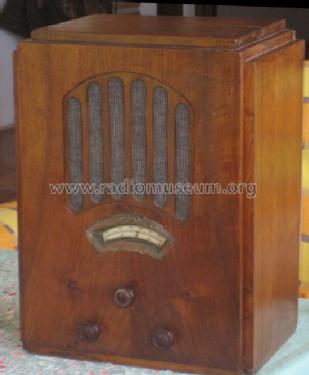

- Model: L4 - Elecco, La Construction Radio-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 385 x 505 x 255 mm / 15.2 x 19.9 x 10 inch
- Notes
-
The volume control is a variable capacitor in series with the antenna. At either end of the volume control travel, the LW/MW switch is actuated. The regeneration control capacitor is combined with the On/Off switch. The grid detector 24 is coupled to the 47 by transformer.
- Author
- Model page created by Nicolaas van Dijk. See "Data change" for further contributors.
