• Country
• France

• Manufacturer / Brand
• Electromag, Applications Électro-Magnétiques; Paris

• Year
• 1955 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 243875

• Number of Tubes
• 6

• Valves / Tubes
• EF41 EF40 EL41 EL41 EM4 5Y3GB

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

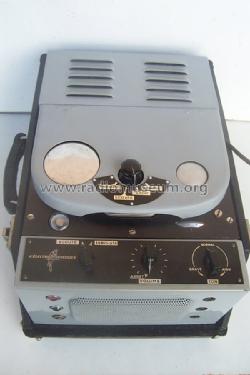

• Model: G4 - Electromag, Applications

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 310 x 210 mm / 16.9 x 12.2 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Author
• Model page created by Christian Berthier. See "Data change" for further contributors.

• Other Models

• Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
