• Country
• Romania

• Manufacturer / Brand
• Tehnoton S.A.; Iasi

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227120

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12 cm = 4.7 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

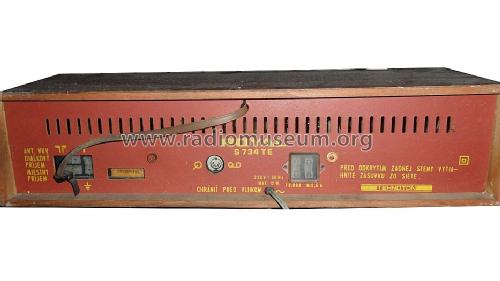

• Model: Royal S734TE - Tehnoton S.A.; Iasi

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 575 x 145 x 200 mm / 22.6 x 5.7 x 7.9 inch

• Notes

• Royal S734TE is an export model for Czechoslovakia with an FM range from 66 to 73.5 MHz (OIRT).

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
