• Country
• Germany

• Manufacturer / Brand
• Elektronik Gera, VEB, (Ostd.) (D)

• Year
• 1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114713

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

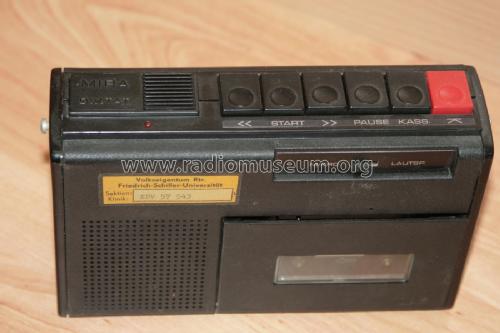

• Model: Mira Diktat - Elektronik Gera, VEB, Ostd. D

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 200 x 128 x 68 mm / 7.9 x 5 x 2.7 inch

• Notes

• Konzipiert als vollsertiges Diktiergerät. Lieferumfang: Schaltmikrofon

  1 IC. Eingebautes Mikrofon, Bandendabschaltung, Baugleich mit Mira MR76, optisch überarbeitet.

  Frequenzgang, angepasst an Diktieraufgabe, 100 Hz...6 KHz

  siehe auch "MIRA DIKTAT S"

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original prospect or advert (RFT Servicemitteilung 1981-01-02-03 Seite-4)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
