• Country
• Austria

• Manufacturer / Brand
• Elin AG für elektrische Industrie; Wien

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288689

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Batteries / addl. power jack / 4x 1,5; 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clockprofi 1220 - Elin AG für elektrische

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 105 x 105 x 72 mm / 4.1 x 4.1 x 2.8 inch

• Notes

• Analoger AM/FM Radiowecker Modell Elin Clockprofi 1220.
  Quarz-Analog-Uhrwerk
  Beleuchtetes Ziffernblatt
  Wecksignal oder Summer
  Weckwiederholung im 5-Minuten Inetrvall
  FM 87,5 - 108 MHz
  AM 525 - 1605 kHz
  Netzgeräteanschluß 6V DC für Radiobetrieb
  Uhr - 1x R6 Batterie




• Net weight (2.2 lb = 1 kg)
• 0.380 kg / 0 lb 13.4 oz (0.837 lb)

• Mentioned in

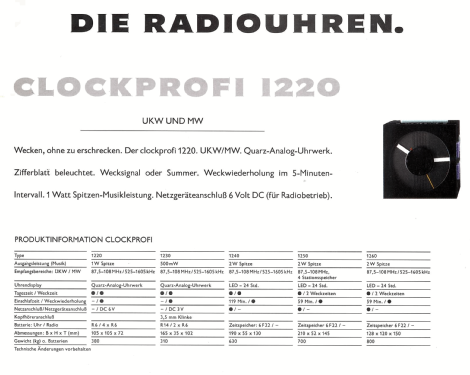

• -- Original prospect or advert (Elin Katalog 1990/91)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
