• Country
• Austria

• Manufacturer / Brand
• Elin AG für elektrische Industrie; Wien

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288930

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clockprofi 1260 - Elin AG für elektrische

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 128 x 120 x 150 mm / 5 x 4.7 x 5.9 inch

• Notes

• AM/FM Radiowecker Modell Elin Clockprofi 1260
  LED-Display, 2 Weckzeiten, Dimmer Schalter, Wecksignal durch Radio oder Summer, Weckwiederholung im 9-Minuten Intervall, FM 87,5 - 108 MHz, AM 525 - 1605 kHz,
  Einschlafautomatik bis 59 Minuten, Netzausfallbatterie 6F22
  Ausführung: Schwarz oder weiß






• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Mentioned in

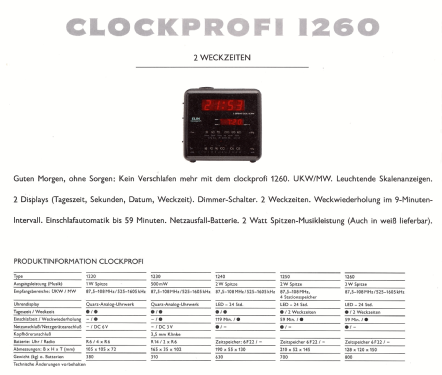

• -- Original prospect or advert (Elin Katalog 1990/91)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
