Colorprofi 7149
Elin AG für elektrische Industrie; Wien
- Country
- Austria
- Manufacturer / Brand
- Elin AG für elektrische Industrie; Wien
- Year
- 1990
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 288922
Elin Katalog 1990/91
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: Colorprofi 7149 - Elin AG für elektrische
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 380 x 390 mm / 14.6 x 15 x 15.4 inch
- Notes
-

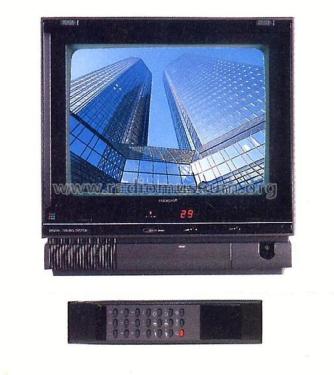

36 cm Mono-Farbfernseher Modell Elin Colorprofi 7149
"Profi-Line"-Serie, Mono PAL B/G, 14" (36 cm) Black Matrix Tube, 83 Kanäle, 30 + 1 AV Programmspeicher, Auto loudness, Chinch-AV-Anschluss, Leistungsaufnahme 67 Watt, Standby 8 Watt, Kontrastfilterscheibe.
Wie Elin colorprofi 7140, jedoch mit PAL B/G, SECAM D/K.
- Net weight (2.2 lb = 1 kg)
- 12.2 kg / 26 lb 14 oz (26.872 lb)
- Mentioned in

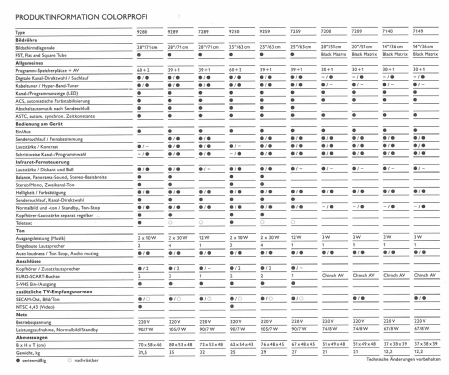

- -- Original prospect or advert (Elin - Die Unterhaltungselektronik 1990/91)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
