• Country
• Austria

• Manufacturer / Brand
• Elin AG für elektrische Industrie; Wien

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284929

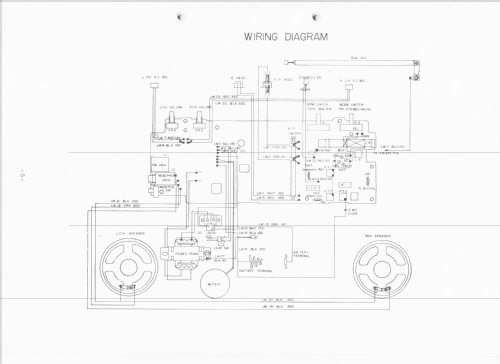

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / UM2: 4 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 3 inch = 7.6 cm

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: MW / UKW Stereo Radiorecorder 5224 Ch= HRC-2000 - Elin AG für elektrische

• Shape
• Portable set > 8 inch (also usable without mains)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Josef Kleindienst. See "Data change" for further contributors.
