Stereo-Radiorecorder Soundprofi 5350
Elin AG für elektrische Industrie; Wien
- Country
- Austria
- Manufacturer / Brand
- Elin AG für elektrische Industrie; Wien
- Year
- 1990
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288923

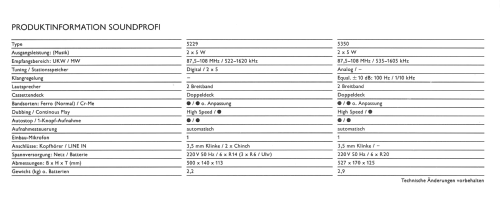

Elin Katalog 1990/91
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 10 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo-Radiorecorder Soundprofi 5350 - Elin AG für elektrische
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 527 x 170 x 125 mm / 20.7 x 6.7 x 4.9 inch
- Notes
-
Portable AM-FM Stereo Radio Double-Cassette-Recorder Modell Elin Soundprofi 5350
FM 87,5 - 108 MHz, AM 535 - 1605 kHz, Graphic Equalizer (100, 1000, 10000 Hz - +/-10dB), High Speed Dubbing, Continuous play, One Touch recording
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- Mentioned in
- -- Original prospect or advert (Elin Katalog 1990/91)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
