• Country
• Austria

• Manufacturer / Brand
• Elin AG für elektrische Industrie; Wien

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207642

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player; Radio with other functions

• Power type and voltage
• Batteries / addl. power jack / 2 x 1,5 / 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.04 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

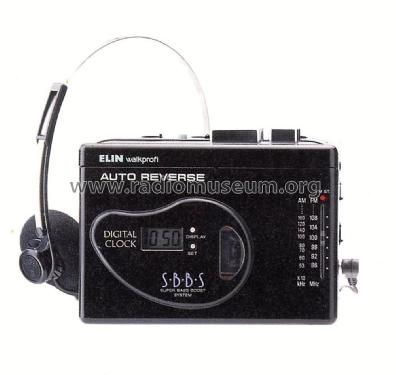

• Model: Walkprofi 530 - Elin AG für elektrische

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 120 x 91 x 41 mm / 4.7 x 3.6 x 1.6 inch

• Notes
• AM/FM - Radio-Cassettenplayer mit Digital-Uhr, 2x 20mW Musikleistung.
  Mono/Stereo-Schalter, Stereoanzeige, Autoreverse, Bandsortenwahl, Super-Bass-Schalter, eingebaute Lautsprecher, Kopfhöreranschluss (3,5mm Klinke).
  Netzgeräteanschluss 3 Volt DC, Akkuladeeinrichtung.

• Net weight (2.2 lb = 1 kg)
• 0.270 kg / 0 lb 9.5 oz (0.595 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• TrauSchau Elin - Die Unterhaltungselektronik 1990/91 Profi Line

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
