572 Clockette Series A Ch= 120065 black
Emerson Radio & Phonograph Corp.; New York, NY
- País
- Estados Unidos
- Fabricante / Marca
- Emerson Radio & Phonograph Corp.; New York, NY
- Año
- 1949
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 96387
-
- alternative name: Emerson Television

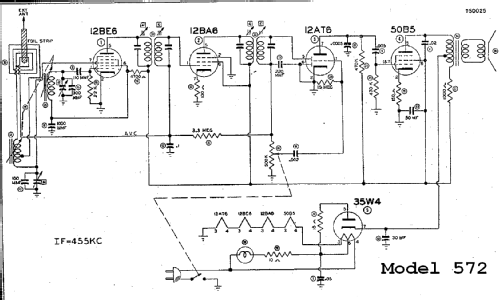

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Numero de valvulas
- 5
- Principio principal
- Superheterodino en general; ZF/IF 455 kHz; 2 Etapas de AF
- Número de circuitos sintonía
- 6 Circuíto(s) AM
- Gama de ondas
- OM (onda media) solamente
- Tensión de funcionamiento
- Red: Aparato AC/DC. / 105 - 125 Volt
- Altavoz
- Altavoz dinámico (de imán permanente) / Ø 4 inch = 10.2 cm
- Material
- Plástico moderno (Nunca bakelita o catalina)
- de Radiomuseum.org
- Modelo: 572 Clockette Series A Ch= 120065 [black] - Emerson Radio & Phonograph
- Forma
- Sobremesa de tamaño mediano sin botonera <= 35 cm. (Incluso portables pero sólo con alimantación por red).
- Ancho, altura, profundidad
- 7.125 x 5.625 x 4 inch / 181 x 143 x 102 mm
- Anotaciones
- BC (540-1620kHz) band. Built-in loop antenna. Cabinet colors available for this model are Ivory, Ebony and Black/White Mottled per the Emerson Radio Service Manual.
SAMS Photofact shows in its index Emerson 572 with chassis no. 120065 in set 20, folder 10 from June 1947. The schematic as such does only name model 540A with chassis 120042 (for color Walnut, Ivory, Green and Red and Broadcast 540 - 1620 kc). Therefore we can assume that model 564 followed and even later model 572. Rider's 18-7 through 18-9 show the same schematics for the models 540, 564 and 572 with chassis numbers 120027 120042 and 120065 - and names the following colors for the Clockette 572: black and white mottled, ivory and ebony (black). See also photos there for the different models. We show also a green marbled Clockette 572 - but brown is most probably black in nature but photos often show a brownish color! There is also a "Series A" for the model 572. Pat. No. 2282759. They all have a built in loop antenna. Please look up and photograph the back wall before posting pictures. Catalogs will tell us later which model was introduced when exactly.
This page is for the model Emerson 572 Clockette Series A - in black. The cabinet is of thin fragile Poly-Styrene plastic and the sets are often found damaged. The model 572 uses the same dial pointer as on the Clockette model from 1937 and the Emersonette 540 from 1947. It has a lighted jewel on top.
- Procedencia de los datos
- Table Top Radios Vol. 1 Stein 98
- Referencia esquema
- Rider's Perpetual, Volume 18 = 1949 and before
- Mencionado en
- Collector's Guide to Antique Radios (6th edition)
- Documentación / Esquemas (1)
- Photofact Folder, Howard W. SAMS (Date june 1947, Set 20, folder 10 #4710-10 - for 540A etc.)
- Documentación / Esquemas (2)
- Emerson Radio and Television Service Manual (Page 95)
