U4B Ch= U4B
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 38282
-
- alternative name: Emerson Television
ebay.com/itm/204875880459?
ebay.com/itm/204875880459?

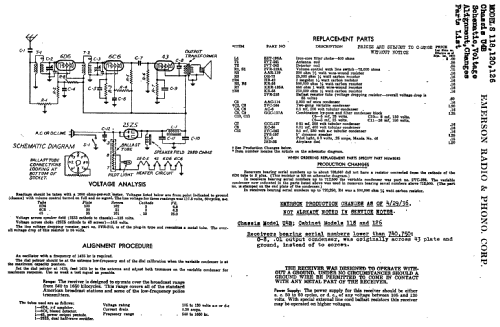

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: U4B Ch= U4B - Emerson Radio & Phonograph
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.5 x 7.5 x 6 inch / 267 x 191 x 152 mm
- Notes
- This model is named like its chassis. The chassis is also used in models 118, 120, 126. Stein dates it ca 1937, which is too late, since it is already in Riders 7 from 1936/37.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98
- Other Models
-
Here you find 2071 models, 1147 with images and 1629 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Collections
The model U4B is part of the collections of the following members.
Forum contributions about this model: Emerson Radio &: U4B Ch= U4B
Threads: 1 | Posts: 2
I have this small Table top Emerson U4B in my collection. It was made in 1935 (according to the info in Steins Volume 1 on page 93) According to Stein's, it is an Ingraham cabinet too. It has 4 vacuum tubes + a ballast. The tubes are: 6D6, 6C6, 43, & a 25Z5. It's size is 10.5 " wide by 7.5 " high and 6 " deep ( + knobs ) . It weighs 7 pounds. Has a 5" diameter speaker with a field coil too.
Because of my lack of a new ballast, I had to modify the power supply to get it operating correctly. I now have this set completley restored & operating fine too. I do have 2 pictures of my set that I can upload when you modify the information on this model.
Marvin J. Glassman, 15.Jul.07
