- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1524

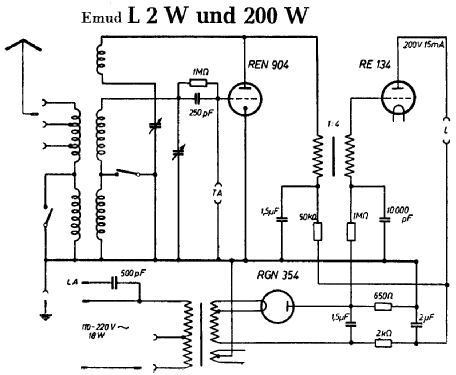

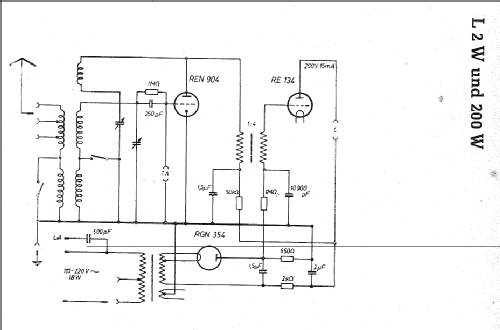

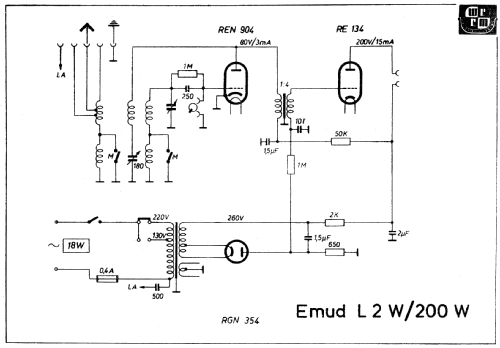

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: 200W - Emud, Ernst Mästling; Ulm
- Notes
- Ch=L2W
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Other Models
-
Here you find 422 models, 328 with images and 231 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Emud, Ernst Mästling; Ulm
