• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1544

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF7 CB2 CL4 RGN1064

• Main principle
• TRF with diode detector; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22GW - Emud, Ernst Mästling; Ulm

• Dimensions (WHD)
• 440 x 300 x 230 mm / 17.3 x 11.8 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 11.2 kg / 24 lb 10.7 oz (24.67 lb)

• Price in first year of sale
• 203.00 RM

• Source of data

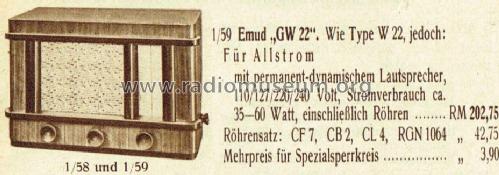

• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk
