• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1595

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF42 ECH42 EF43 EBC41 EM4 EL41 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     5 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 781W - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 315 x 235 mm / 18.7 x 12.4 x 9.3 inch

• Notes
• UKW = 83,5···102 MHz.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Price in first year of sale
• 269.00 DM

• Source of data

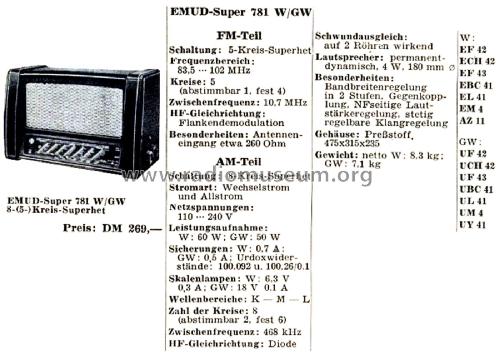

• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Other Models

• Here you find 422 models, 328 with images and 231 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
