• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 100705

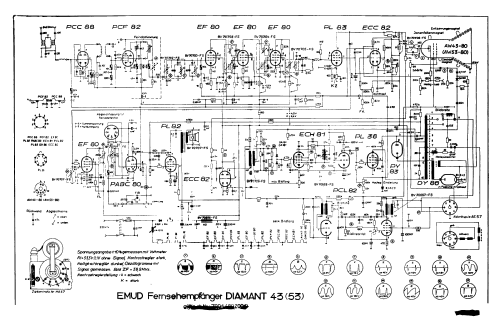

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• AW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diamant 53S - Emud, Ernst Mästling; Ulm

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 620 x 960 x 630 mm / 24.4 x 37.8 x 24.8 inch

• Notes
• Technische Daten wie Diamant 43T, jedoch mit 53-cm-Bildröhre und im Standgehäuse.

• Net weight (2.2 lb = 1 kg)
• 70 kg / 154 lb 3 oz (154.185 lb)

• Price in first year of sale
• 958.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
