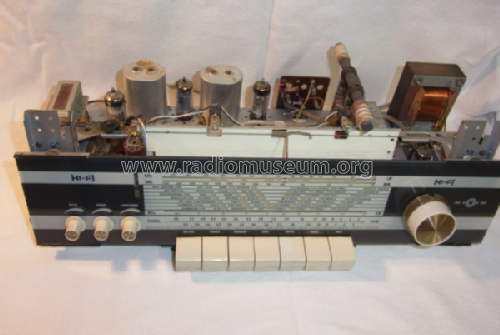

Funkberater Exclusiv Phonosuper FB1661

Emud, Ernst Mästling; Ulm

  • Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238558

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 450/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 130; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Funkberater Exclusiv Phonosuper FB1661 - Emud, Ernst Mästling; Ulm
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 270 x 230 mm / 24.4 x 10.6 x 9.1 inch
  • Mentioned in
  • -- Schematic
