• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82814

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 ECH81 EF41 EABC80 EM11 or EM4 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

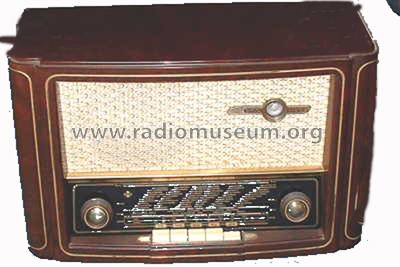

• Model: Record 200W [EM4] - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 320 x 220 mm / 19.3 x 12.6 x 8.7 inch

• Notes

• Emud Record 200W gab es auch mit EM11 sowie ab 1954 mit EM80 (dann mit ECC85).
  Siehe auch Exportversion mit 3x KW und MW.

  Dial lamp: 6,3V/0,3A

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
