• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25308

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EF89 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

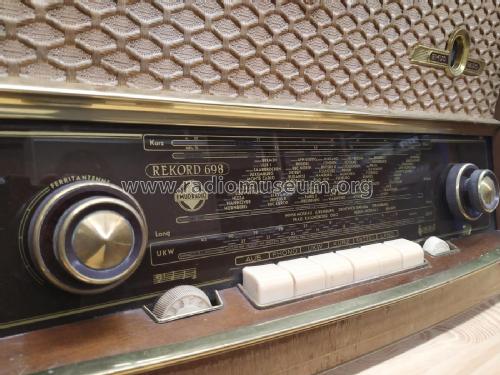

• Model: Rekord 698 - Emud, Ernst Mästling; Ulm

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie

• Literature/Schematics (1)
• -- Original-techn. papers.
