Record-Standard LG2
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1526

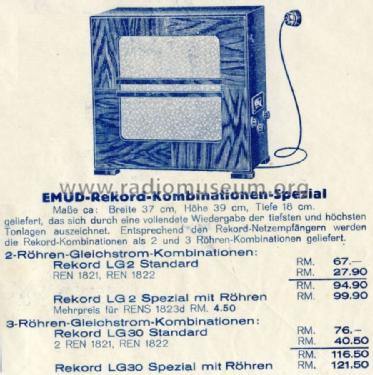

Quelle: Katalog Prohaska 1932/33, S.21
- Number of Tubes
- 2
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (4 magnet poles).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Record-Standard LG2 - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 370 x 400 x 180 mm / 14.6 x 15.7 x 7.1 inch
- Notes
-
Bedienung seitlich.
Preis ohne Röhren, zusätzlich Röhrensatz, Preis: 27,90 RM
- Price in first year of sale
- 67.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- FS-Bestückungstab. (wahrsch. m.Fehler)
