• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1950/1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123527

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

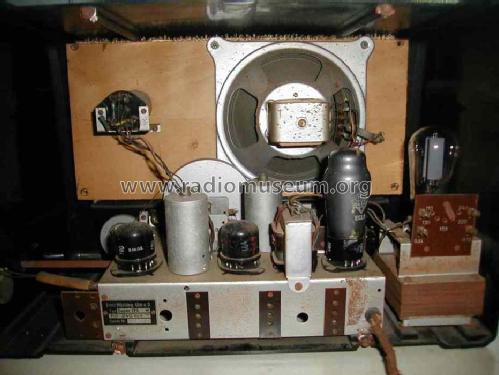

• Model: Record Super 179-W [Stahlröhren] - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 315 x 235 mm / 19.1 x 12.4 x 9.3 inch

• Notes
• Auf der Skala des Gerätes steht "Record Super 179". Am Chassis steht hingegen nur "Super 179 W". Beim Modell-Namen/Type sind nun beide Angaben erfasst. Edyn.-Lautsprecher sowie mag. Auge sind weiter Merkmale diese Gerätes.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Carlo Markulis. See "Data change" for further contributors.
