• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20124

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

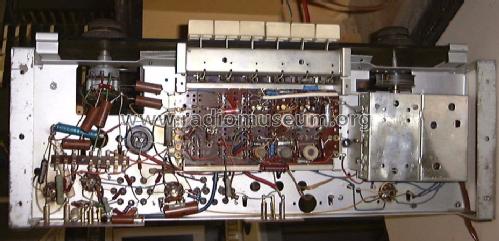

• Model: Rekord H 3D 6 Tasten - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 590 x 385 x 260 mm / 23.2 x 15.2 x 10.2 inch

• Notes
• Raumklanggerät mit Tonkammer-System. Nussbaum braun. Auch als Rekord 3D-N/W bezeichnet.

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Price in first year of sale
• 250.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Mentioned in
• Katalog Thiele,Helmstedt 1955/56 (Rundfunk Phono Fernsehen 1955/56)

• Literature/Schematics (4)
• -- Schematic
