Rekord 61
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23393
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 6 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

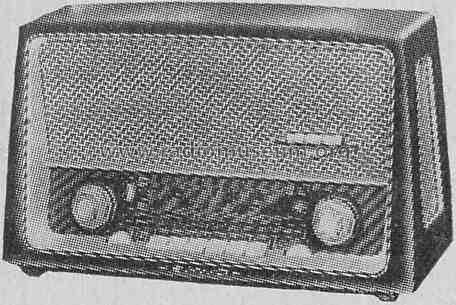

- Model: Rekord 61 - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 525 x 310 x 245 mm / 20.7 x 12.2 x 9.6 inch
- Net weight (2.2 lb = 1 kg)
- 9.3 kg / 20 lb 7.8 oz (20.485 lb)
- Price in first year of sale
- 219.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1960/61
