Rekord 660
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26057
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

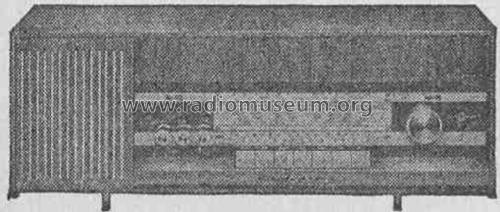

- Model: Rekord 660 - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 630 x 220 x 230 mm / 24.8 x 8.7 x 9.1 inch
- Notes
- Dioden: 2× AA113.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
