Record-Standard W2
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1528
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Record-Standard W2 - Emud, Ernst Mästling; Ulm
- Dimensions (WHD)
- 300 x 185 x 170 mm / 11.8 x 7.3 x 6.7 inch
- Notes
-
Preis ohne Röhren, zusätzlich Röhrensatz, Preis: 25,65 RM
- Price in first year of sale
- 52.00 RM +
- Source of data

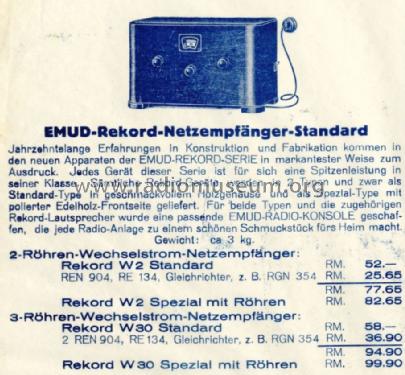

- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
