Stereo-Spezial 650
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25619
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

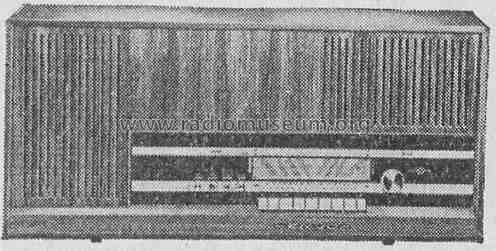

- Model: Stereo-Spezial 650 - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 690 x 322 x 227 mm / 27.2 x 12.7 x 8.9 inch
- Notes
- Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W.
- Net weight (2.2 lb = 1 kg)
- 8.7 kg / 19 lb 2.6 oz (19.163 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1964/1965
