Superior 6-W
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1533
Der Radio Händler Aug. 1933

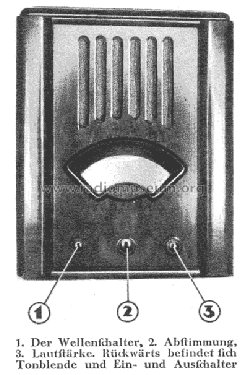

Bild aus Funkschau Heft 2 / 1934
Bild aus Funkschau Heft 2 / 1934
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet, double/triple conversion; 2200/100 Special; 2 AF stage(s)
- Tuned circuits
- 11 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- from Radiomuseum.org
- Model: Superior 6-W - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
- Duplex-Super mit 2 ZF, Oszillator und Misch - Stufen. FS-Bestückungstabellen scheinen falsch zu sein. Eine Röhre RENS1254 zu viel, RGN1064 nicht verifiziert.
- Price in first year of sale
- 295.00 RM
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Literature/Schematics (1)
- Funkschau Heft 2 / 1934
