• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1933–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1534

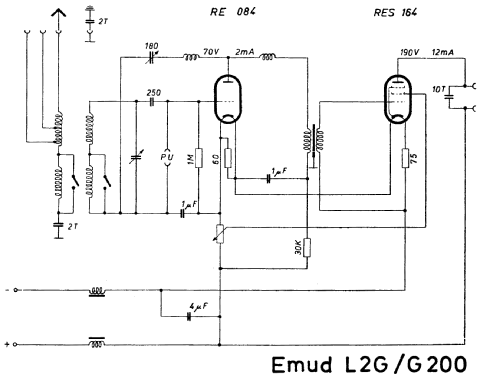

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• RE084 RE114 or RE134

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110*220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Volksradio G2L - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 300 x 380 x 185 mm / 11.8 x 15 x 7.3 inch

• Price in first year of sale
• 72.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"
