Voxson 1960
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1960–1963
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 24087
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

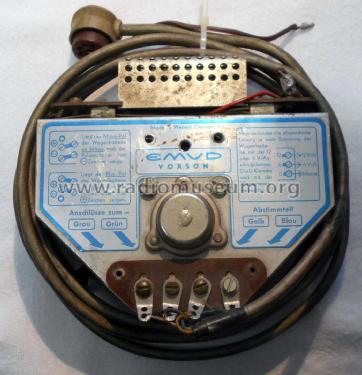

- Model: Voxson [1960] - Emud, Ernst Mästling; Ulm
- Dimensions (WHD)
- 145 x 70 x 70 mm / 5.7 x 2.8 x 2.8 inch
- Notes
-
Eingebaute Ferritantenne; Empfangsteil aus Preßstoff an Stelle des Rückspiegels zu montieren. Lautsprecherteil: Material Aluminium, Tiefe 60 mm, Gewicht 1,1 kg.
Siehe auch verwandte Modelle
- Voxson Vanguard 736
- Murphy Voxson Car Radio MR 750
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Price in first year of sale
- 198.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1960/61
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1961/62 (HdB d.Rdf-& Ferns-GrH 1962/63)
