- Country
- France
- Manufacturer / Brand
- Émyphone - voir aussi Inovat; Boulogne-Billancourt, Paris, Choisy
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306336

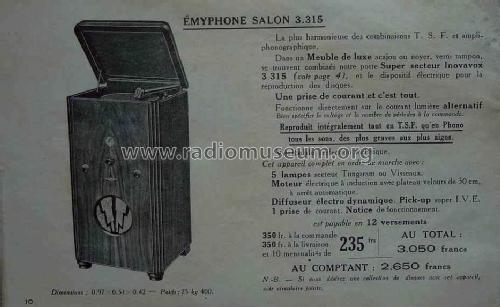

Catalogue Général Inovat 1933, p.10
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Salon 3315 - Émyphone - voir aussi Inovat;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 510 x 970 x 420 mm / 20.1 x 38.2 x 16.5 inch
- Notes
-
Châssis Inovavox 3315. Lampes secteur Tungsram ou Visseaux.
Moteur électrique à induction avec plateau velors de 30 cm, arrêt automatique, pick-up I.V.E.
Meuble acajou ou noyer, verni au tampon.
- Net weight (2.2 lb = 1 kg)
- 25.4 kg / 55 lb 15.2 oz (55.947 lb)
- Price in first year of sale
- 2,650.00 FRF
- Mentioned in
- -- Original prospect or advert (Catalogue Général Inovat 1933, p.10)
- Other Models
-
Here you find 16 models, 13 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Émyphone - voir aussi Inovat; Boulogne-Billancourt, Paris, Choisy
