Récepteur de Communications Type E
Emyradio, Réné Barthélemy; Paris
- Country
- France
- Manufacturer / Brand
- Emyradio, Réné Barthélemy; Paris
- Year
- 1942 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 244164
F_EMYRADIO_Type_E_Short_wave_receiver
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Récepteur de Communications Type E - Emyradio, Réné Barthélemy;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Notes
-

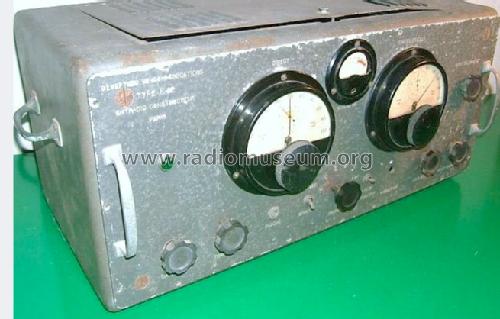

Emyradio Paris made this prototype shortwave receiver in the late thirties. Before it could be finished the receiver was confiscated by the parts supplier.
The antenna trimmer, the power transformer and the internal metal sheets are not mounted. Also the receiver indicates 4 ranges on the front panel but only two ranges were actually installed.
The receiver works with external power. It's a one of a kind shortwave receiver using precision clockwork mechanics including a pull-out 1-to-8 fine reduction for precise tuning of the main and the bandspread variable capacitors.
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Author
- Model page created by Friedrich Szoncso. See "Data change" for further contributors.
