• Year
  • 1927/1928
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 301738

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 4 & 50 & 90 & 3 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

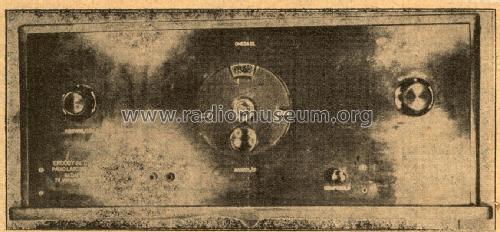

  • Model: Omega III. - Erdődy & Co. Erco; Budapest
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Price in first year of sale
  • 235.00 Pengő
  • Mentioned in

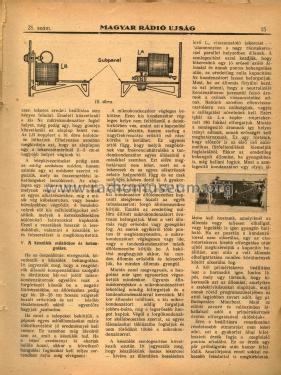

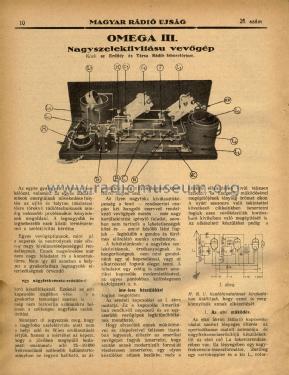

  • Magyar Rádió Újság 1927.
  • Literature/Schematics (1)
  • Barta és Társa Árjegyzék - BAPO 21/A. Bp. 1928.
  • Author
  • Model page created by Sándor Perneky. See "Data change" for further contributors.
