• Country
• Sweden

• Manufacturer / Brand
• Ericsson (L.M.), Allmänna Telefonaktiebolaget; Stockholm

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 150575

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC83 EL95 EM34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 140; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9.5 cm = 3.7 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

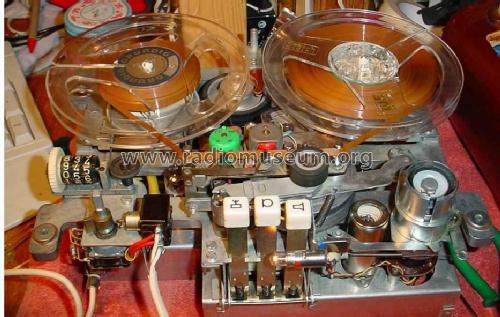

• Model: Ericorder KTB212 - Ericsson L.M., Allmänna

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 345 x 160 x 295 mm / 13.6 x 6.3 x 11.6 inch

• Notes
• Tape speeds 4.75 cm/s, 9.5 cm/s. Maximum reel size 15 cm.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Ericsson Review Nr 3 1957

• Author
• Model page created by Ricard Wanderlöf. See "Data change" for further contributors.
