- Country
- Sweden
- Manufacturer / Brand
- Ericsson (L.M.), Allmänna Telefonaktiebolaget; Stockholm
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 190614
ebay VK:radiocollect #110638518052
ebay VK:radiocollect #110638518052
ebay VK:radiocollect #110638518052
ebay VK:radiocollect #110638518052
Picture courtesy of guest Kari Soininen
Picture courtesy of guest Kari Soininen
Picture courtesy of guest Kari Soininen
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: ZGA-3923 - Ericsson L.M., Allmänna
- Shape
- Tablemodel, with any shape - general.
- Notes
-

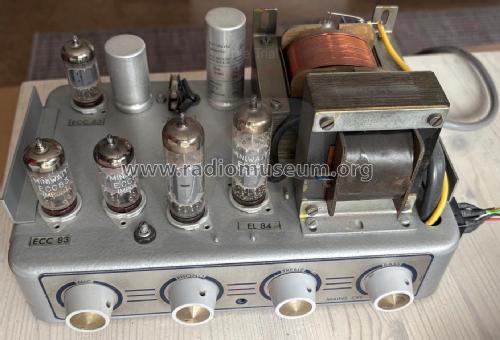

The Ericsson ZGA-3923 is an AC operated 5 tube audio amplifier. Has DIN inputs for microphone, record player and auxiliary (1 V). Output impedance: 1 Ω, 4 Ω, 16 Ω and 250 Ω.
- Author
- Model page created by Aglef Tröger. See "Data change" for further contributors.
