• Country
• Belgium

• Manufacturer / Brand
• Erpé, Ritzen & Penners; Bruxelles

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78849

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 58 2A7 2B7 57 2A5 80

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

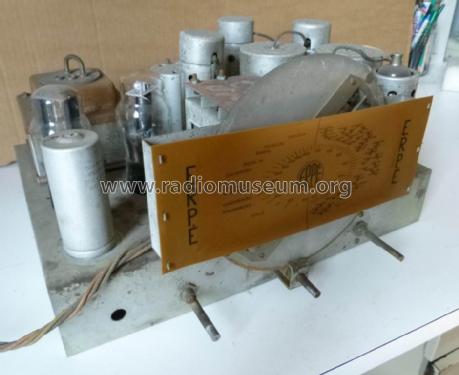

• Model: 346 - Erpé, Ritzen & Penners;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 385 x 460 x 315 mm / 15.2 x 18.1 x 12.4 inch

• Author
• Model page created by Albert Aerts †. See "Data change" for further contributors.
