- Paese
- Olanda
- Produttore / Marca
- Erres, Van der Heem NV; Den Haag
- Anno
- 1940/1941
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 94412
Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 4
- Principio generale
- ZF/IF 106 kHz
- Gamme d'onda
- Onde medie (OM), lunghe (OL) e corte (OC).
- Particolarità
- Indicatore ottico di sintonia pre occhio magico
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110; 250 Volt
- Radiomuseum.org

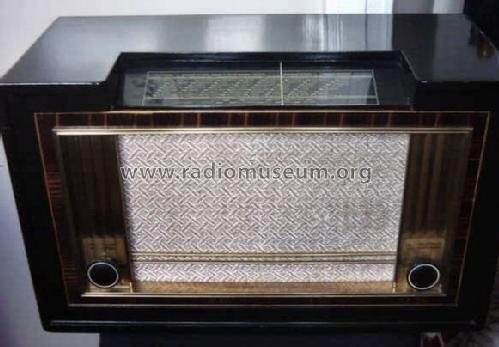

- Modello: KY196 - Erres, Van der Heem NV; Den
- Prezzo nel primo anno
- 195.00 Hfl
- Letteratura / Schemi (1)
- Technisch- Commercieel - Radio Vademecum Staleman
- Autore
- Modello inviato da John Koster. Utilizzare "Proponi modifica" per inviare ulteriori dati.
- Altri modelli
-
In questo link sono elencati 407 modelli, di cui 324 con immagini e 222 con schemi.
Elenco delle radio e altri apparecchi della Erres, Van der Heem NV; Den Haag
Discussioni nel forum su questo modello: Erres, Van der Heem: KY196
Argomenti: 1 | Articoli: 1
Visible on the picture of the inside of this radio, the chassis of this radio
has a little red sticker on the left.
It reads " Licenced by Philips" and a serialnumber.
The same chassis I have found in an - Aetherkruiser AK401-
Aetherkruiser and Erres came from the same, van der Heem, factory.
I have recently bought this radio as it is the model my parents had
as their first radio. It is visible on some pictures I have from my
third birthday.
Not mentioned at the KY196 and AK401 is that the set also employs
a 4662 indicator. The brass knob on the right ( back ) of the chassis
controls the illumination of this indicator.
On the far left ( on the picture of the back of the radio ) the axis of
a knob is visible that has a complicated construction. It has a set
of detent wheels that give the knob double function. When pulled
it is the tuning knob. When pushed it is to switch bands.
This construction is also at the volume knob.
Andre Schmeets
has a little red sticker on the left.
It reads " Licenced by Philips" and a serialnumber.
The same chassis I have found in an - Aetherkruiser AK401-
Aetherkruiser and Erres came from the same, van der Heem, factory.
I have recently bought this radio as it is the model my parents had
as their first radio. It is visible on some pictures I have from my
third birthday.
Not mentioned at the KY196 and AK401 is that the set also employs
a 4662 indicator. The brass knob on the right ( back ) of the chassis
controls the illumination of this indicator.
On the far left ( on the picture of the back of the radio ) the axis of
a knob is visible that has a complicated construction. It has a set
of detent wheels that give the knob double function. When pulled
it is the tuning knob. When pushed it is to switch bands.
This construction is also at the volume knob.
Andre Schmeets
Andre Schmeets, 25.Feb.07
