• Country
• France

• Manufacturer / Brand
• Erwa; Saint-Quentin

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 277790

• Number of Tubes
• 5

• Valves / Tubes
• E447 E446 E444 E443H 1561

• Main principle
• Superheterodyne (common); ZF/IF 112 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

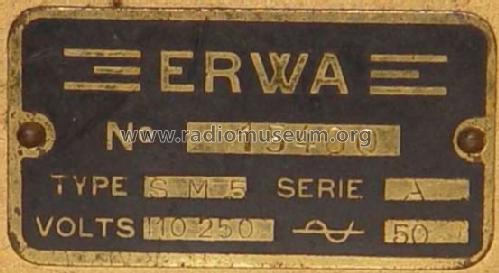

• Model: SM5 - Erwa; Saint-Quentin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 500 x 250 mm / 16.1 x 19.7 x 9.8 inch

• Author
• Model page created by Philippe Ragot. See "Data change" for further contributors.

• Other Models

• Here you find 10 models, 7 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
