- Country
- Germany
- Manufacturer / Brand
- Erzmann, Inhaber Ing. Rudolf Nowy; Zwönitz /Sa.
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145966
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: unbekannt - Erzmann, Inhaber Ing. Rudolf
- Shape
- Tablemodel, low profile (big size).
- Notes
- OSW-Röhren
- Author
- Model page created by Berthold Grenz. See "Data change" for further contributors.
- Other Models
-
Here you find 6 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Erzmann, Inhaber Ing. Rudolf Nowy; Zwönitz /Sa.
Collections
The model unbekannt is part of the collections of the following members.
Forum contributions about this model: Erzmann, Inhaber Ing: unbekannt
Threads: 1 | Posts: 3
Liebe Sammlerfreunde,
wer kann mir dieses Gerät bestimmen? Über die Röhrenbestückung komme ich im RM nicht weiter. Bestückung: AZ11, 6V6, 6SQ7, 6A7, 6E5, 6SQ7
Am Lautsprecher sind RFT und VEB zu lesen, daher vermutlich Ostdeutschland.

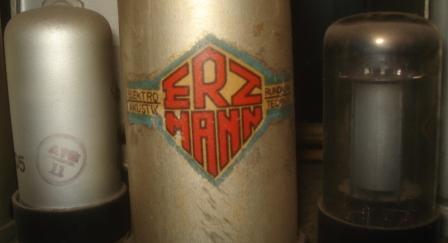

die Bilder hänge ich an.
Attachments
Berthold Grenz, 27.Jan.09
