Tuner AM-FM AF1387
Esart; Paris
- Country
- France
- Manufacturer / Brand
- Esart; Paris
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195411

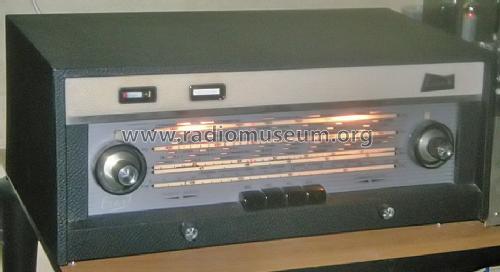

De la revue Haut-Parleur Esart_foto

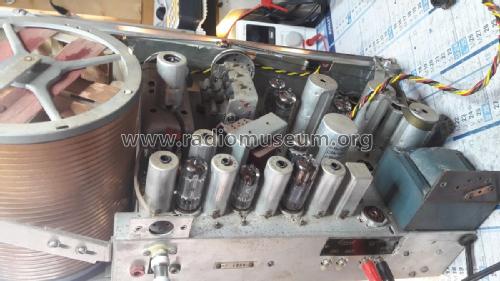

De la revue Haut-Parleur Esart_AF1387_vueAR
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Tuner AM-FM AF1387 - Esart; Paris
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 575 x 300 x 290 mm / 22.6 x 11.8 x 11.4 inch
- Literature/Schematics (1)
- La revue du son
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
