Tuner FM FM
Esart; Paris
- Country
- France
- Manufacturer / Brand
- Esart; Paris
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160241
revue du SON - No. 128 - Decembre 1963

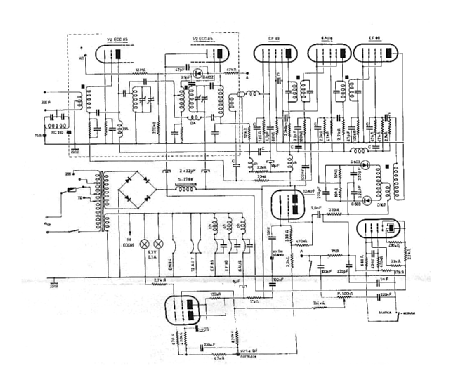

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Tuner FM FM - Esart; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 340 x 125 x 245 mm / 13.4 x 4.9 x 9.6 inch
- Notes
-
Esart Tuner FM. 87 - 108 MHz, mono, tuning indicator tube, 55 VA power consumption.
- Mentioned in
- revue du SON - No. 128 - Decembre 1963
- Author
- Model page created by a member from A. See "Data change" for further contributors.
