Cadrex 745
Etherlux-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Etherlux-Radio; Paris
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122769

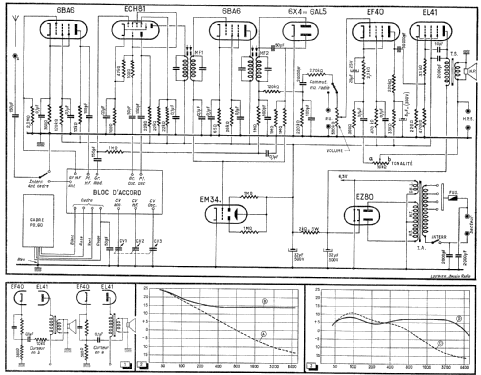

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cadrex 745 - Etherlux-Radio; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 290 x 220 mm / 18.1 x 11.4 x 8.7 inch
- Notes
-
2 x OC dont une bande étalée. Cadre à air orientable. Tonalité variable par contre réaction. Détection par 6X4 ou 6AL5.
Ébénisterie noyer ou palissandre, joncs plastique ou cuivre.
- Mentioned in
- Radio Constructeur et Dépanneur (No 98, Mai 1954)
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
