Camping-Auto-Interphone
Etherlux-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Etherlux-Radio; Paris
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 132101
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast and LongWave in ONE range.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

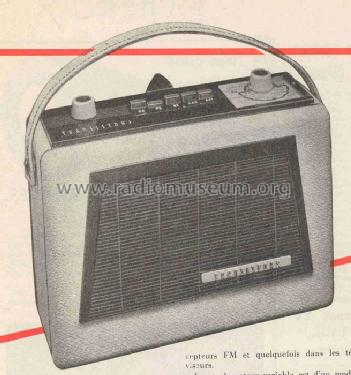

- Model: Camping-Auto-Interphone - Etherlux-Radio; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Camping-Auto-Interphone (Etherlux) est un recepteur à 6 transistors et une diode germanium OA79 pour la détection.
Il peut être utilisé sur une antenne de voiture et se transforme facilement en interphone.
- Literature/Schematics (1)
- revue Radio Constructeur novembre 1959
- Author
- Model page created by Jacky Parmentier. See "Data change" for further contributors.
