Electrophone 743
Etherlux-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Etherlux-Radio; Paris
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 135708
Le Haut Parleur Février 1955

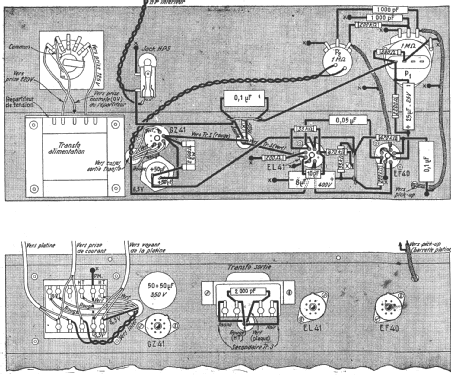

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Electrophone 743 - Etherlux-Radio; Paris
- Dimensions (WHD)
- 400 x 170 x 390 mm / 15.7 x 6.7 x 15.4 inch
- Notes
- Platine Mélodyne Pathé-Marconi 3 vitesses 33, 45 et 78 tours, changeur automatique pour les disques 45 tours
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
