• Country
• France

• Manufacturer / Brand
• Etherlux-Radio; Paris

• Year
• 1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 137359

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF40 EL41 GZ41

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

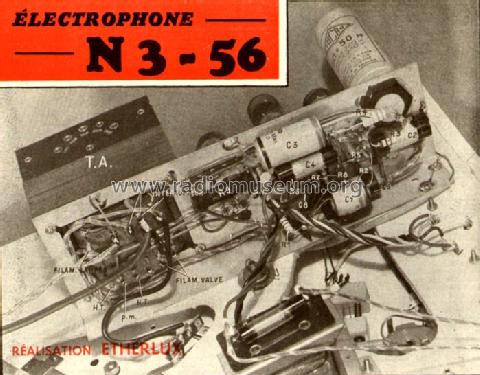

• Model: Electrophone N-3-56 - Etherlux-Radio; Paris

• Dimensions (WHD)
• 390 x 200 x 230 mm / 15.4 x 7.9 x 9.1 inch

• Notes
• Valise gainé 2 tons, platine 3 vitesses (33, 45,78 tours).

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1956

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
