• Country
• France

• Manufacturer / Brand
• Etherlux-Radio; Paris

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139239

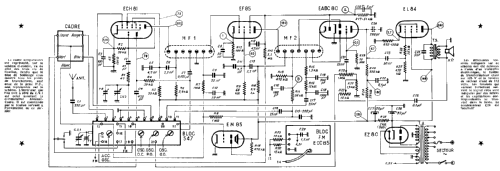

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM85 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 115; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Junior FM - Etherlux-Radio; Paris

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 280 x 220 mm / 16.1 x 11 x 8.7 inch

• Notes
• Clavier 5 touches, cadre rotatif, boitier couleur noyer.

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1958

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
