• Country
• France

• Manufacturer / Brand
• Etherlux-Radio; Paris

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121031

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF41 ECH42 EAF42 EAF42 6AF7 EL41 GZ40

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

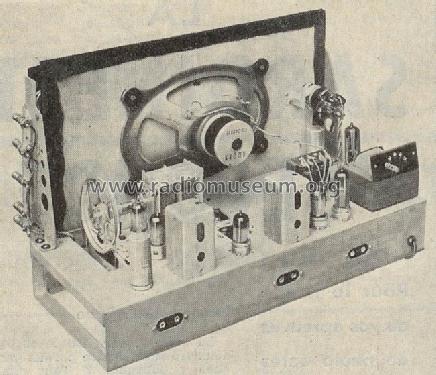

• Model: RC 71 Band-Spread - Etherlux-Radio; Paris

• Notes
• 10 gammes d'ondes GO PO OC et 7 X OC bandes étalées.

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1951

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
